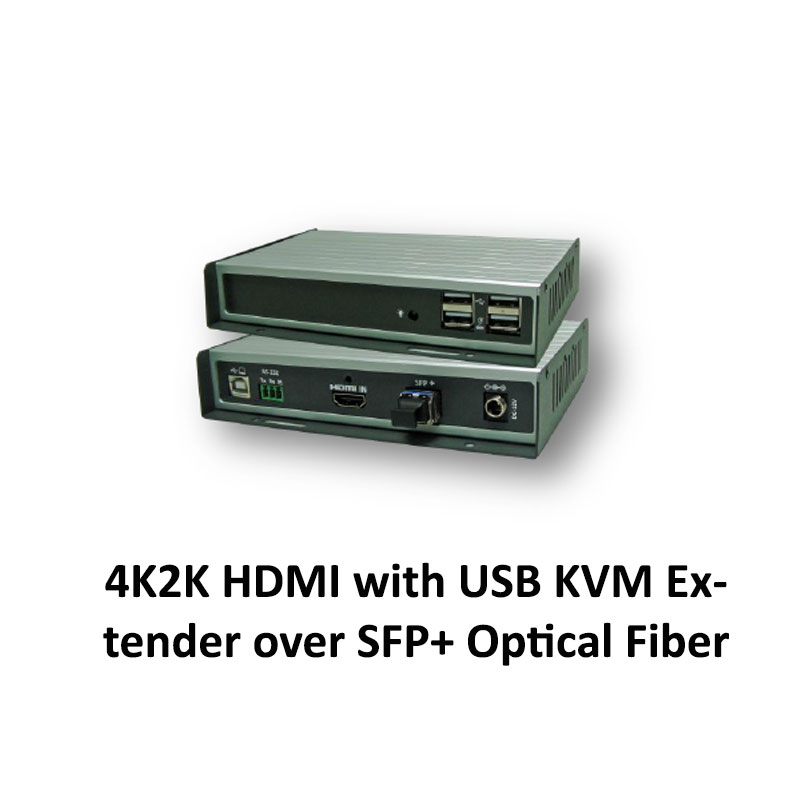

4K2K HDMI with USB KVM Extender over SFP+ Optical Fiber
The BE-96F404 is a HDMI + USB KVM Extender over Optical Fiber that can support HDMI signals up to 4K2K (3840x2160) in non-compressed, lossless extension. The product works with any HDMI 1.4 Audio/Video source in resolution up to 4K Ultra HD 3840x2160@30Hz, as well as fully HDCP compliant and EDID/Hot Plug transparent.
Download BrochureThe BE-96F404 is a HDMI + USB KVM Extender over Optical Fiber that can support HDMI signals up to 4K2K (3840x2160) in non-compressed, lossless extension.
The product works with any HDMI 1.4 Audio/Video source in resolution up to 4K Ultra HD 3840x2160@30Hz, as well as fully HDCP compliant and EDID/Hot Plug transparent. The 2-way USB Extender can be used for the Keyboard/Mouse as well as Touch Screen for the PC Control.
The product is designed to work in the industrial environment of operating temperature 0 to 70℃. The LC terminated fiber optic cable is used, preserving signal integrity and providing excellent protection from electromagnetic interference (EMI). Compared to similar copper-based solutions, optical signal transmission provides inherent galvanic isolation and excellent immunity to electromagnetic interference. The units also feature metal enclosures, providing further protection against radiated noise.
- Extends HDMI and USB over a SFP+ Optical Fiber. Support HDMI 1080p or 4K2K (3840x2160@30Hz) up to 1.4KM over SM Fiber Cable.
- Support 12-bit Deep Color, LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™
- Fully transparent DDC/EDID, CEC and Hot-Plug signal.
- Support USB Keyboard, Mouse, and Touch Screen.
- TX support local Console, TX user can Lock/Unlock RX user.
- RX support local PC, RX user can switch/access both TX and RX PC.
- Plug-and-play, no any additional software driver is required.
- Firmware upgradable.
4K2K HDMI with USB KVM Extender over SFP+ Optical Fiber: Download Sheet
